Multi-function 8-way switch panel system

Terrafirma Multi-function 8-way switch panel system
If you are looking to fit LED lights to your vehicle but are put off with all the wiring?

This 8-way switch panel allows you to wire up eight different lights or accessories while only having one switch panel mounted in the cab of the vehicle. No more drilling lots of holes with separate switches and relays.

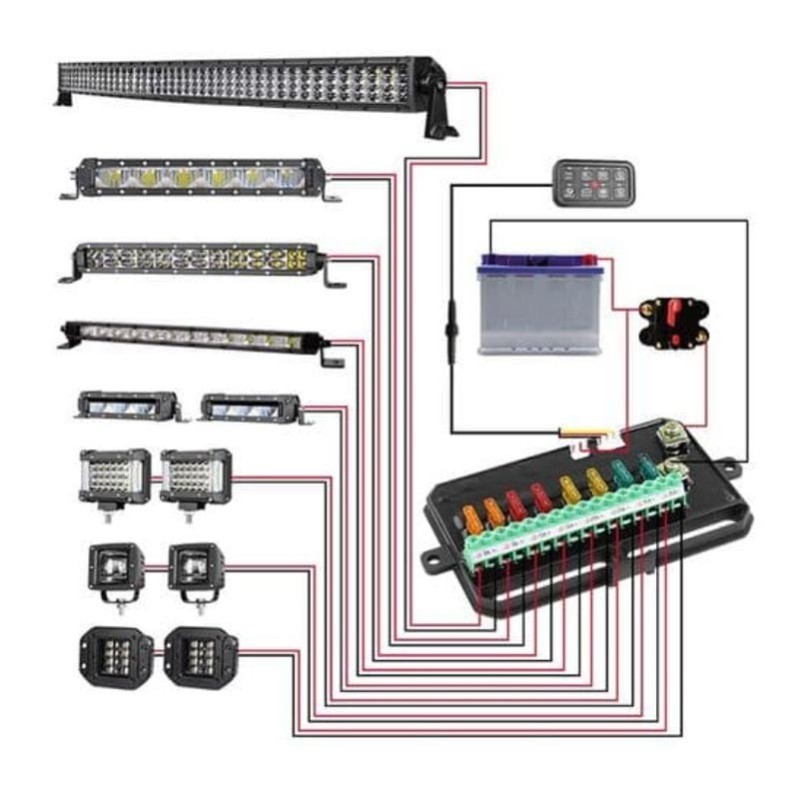

Simply connect your lights to the main fused control board and run one control wire through to the cab area. This then allows you to control all eight devices separately. A sheet of 50 labels is also included so you can customise your touch screen panel to match your lights.


Maximum Power - 600w - 1200w
Maximum Current - 60A
Input 12v to 24v
Outlets - 2 x 30amp, 2 x 20amp, 2 x 10amp and 2 x 5amp
IP67 rated


What's included;

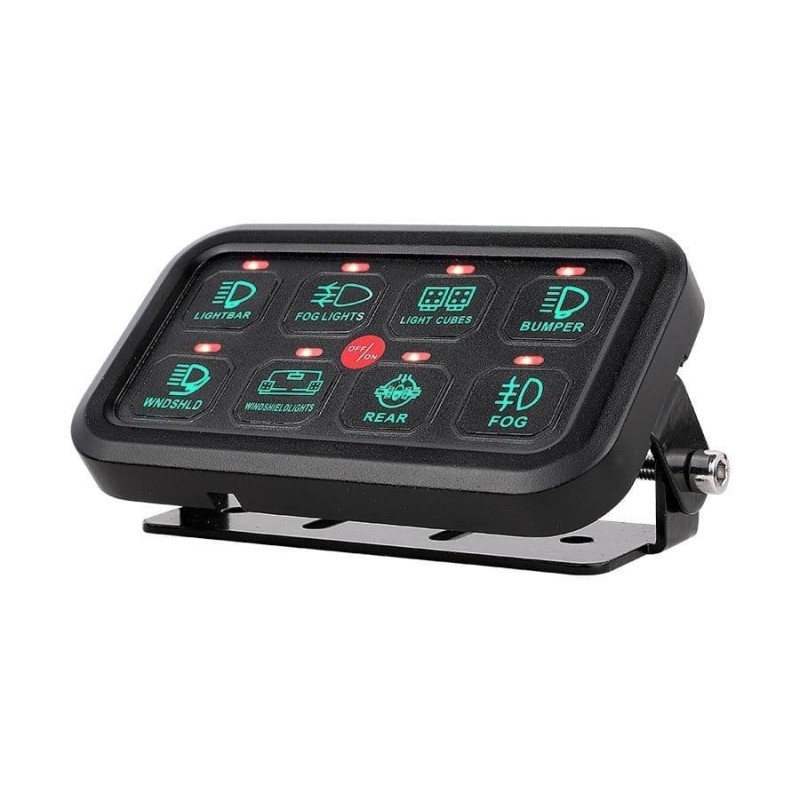

• Touch Screen Panel (115mm x 66mm x 15mm)
• Circuit Control Box (162mm x 110mm x 34mm)
• Fuses
• Switch Panel Brackets
• Voltage Protection Breaker
• Circuit Box Brackets
• Sheet of 50 Standard Labels
• Battery Cables & Wire harness
• Screws & Mounting Hardware

Part No TF7010
