POWERBOOST servo kit for Defender without ABS - 1992-2016

LOF POWERboost servo kit for non ABS Defender to fit Later Defenders from 1992-2016

Check list- Will this fit your Defender?

1. Your Defender does not have ABS
2. Your Defender has 3 pipes coming from the master cylinder
3. Your Defender is running master cylinder LR013018 (google part number to visualise)
4. Your Defender was made AFTER 1992
5. Your Defender is a 200/300tdi /V8/ TD5 / 2.4/2.2 TDCI

So what is it?

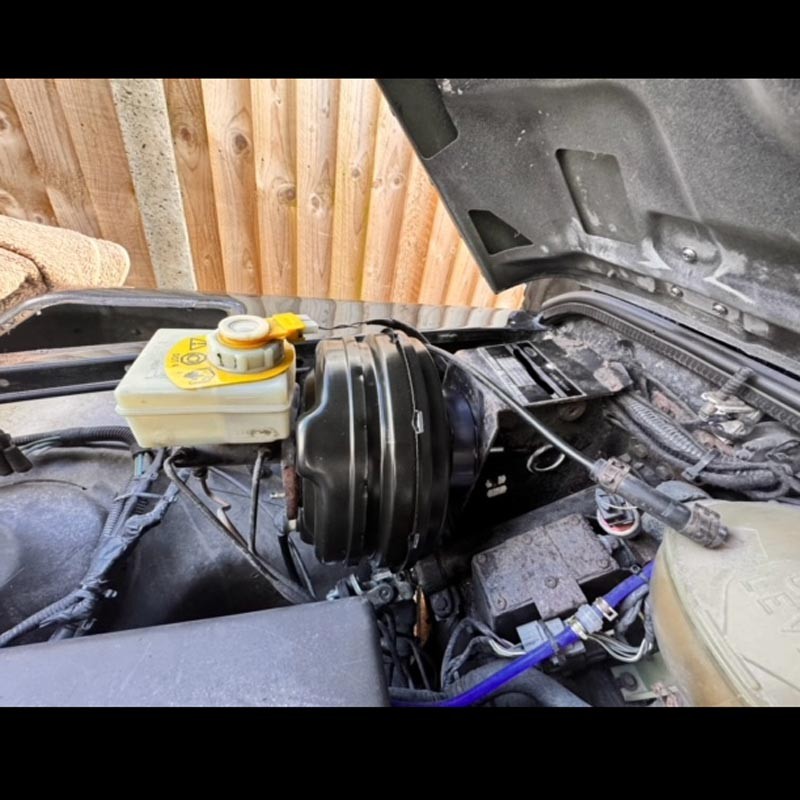

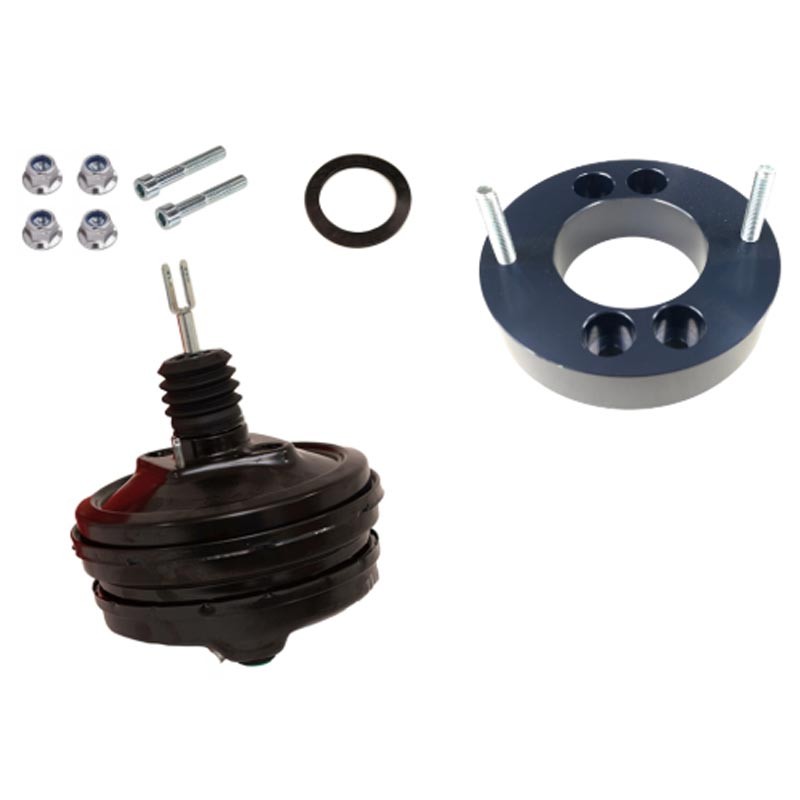

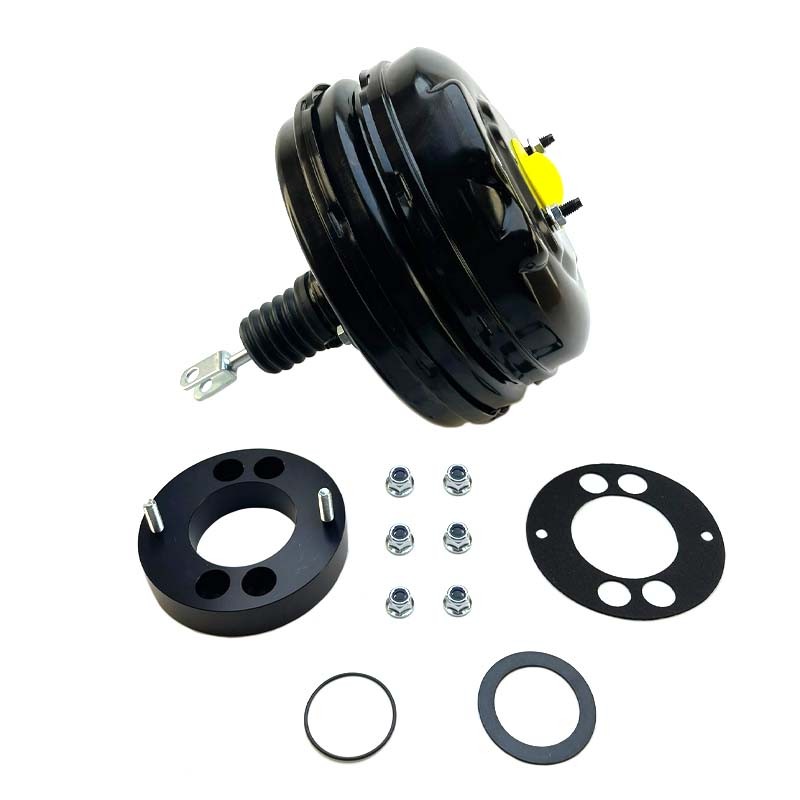

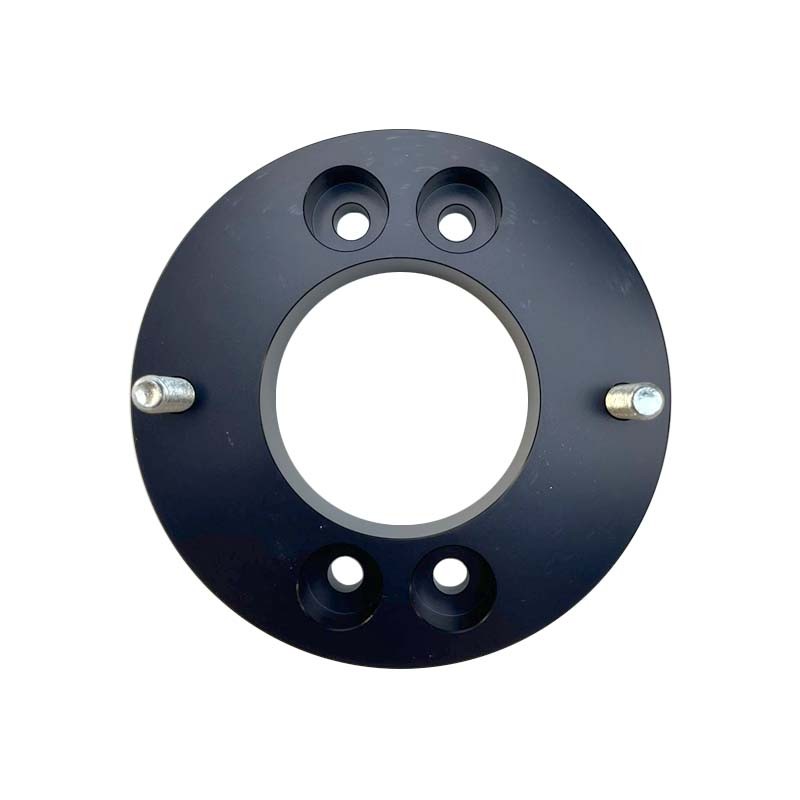

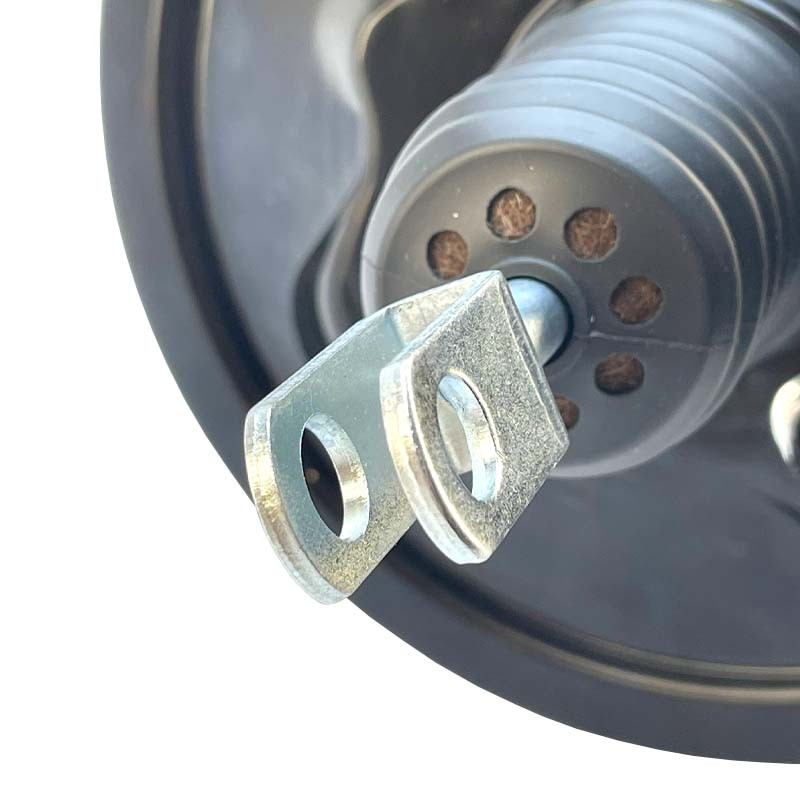

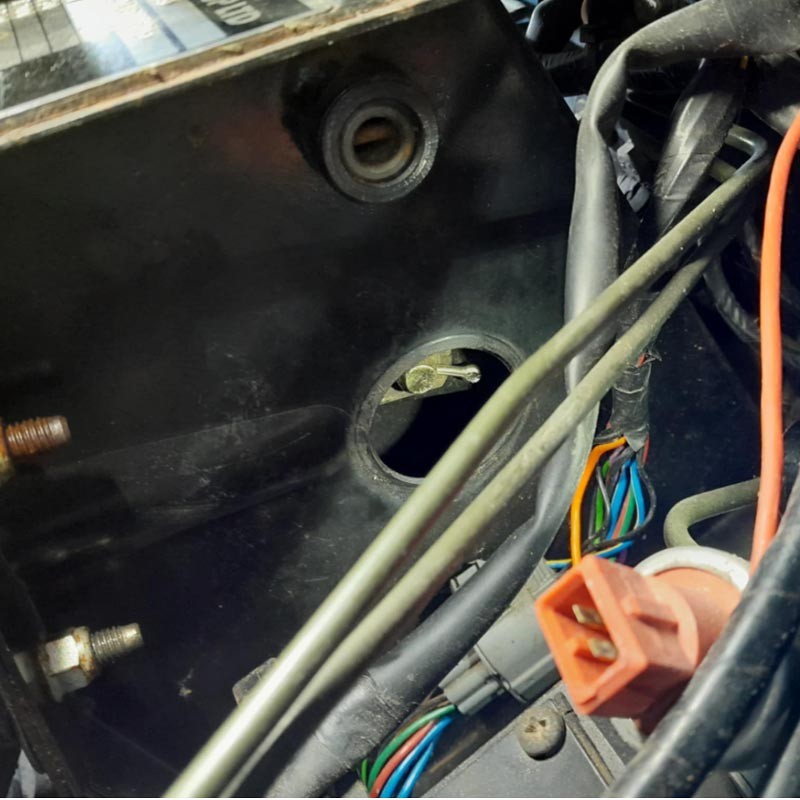

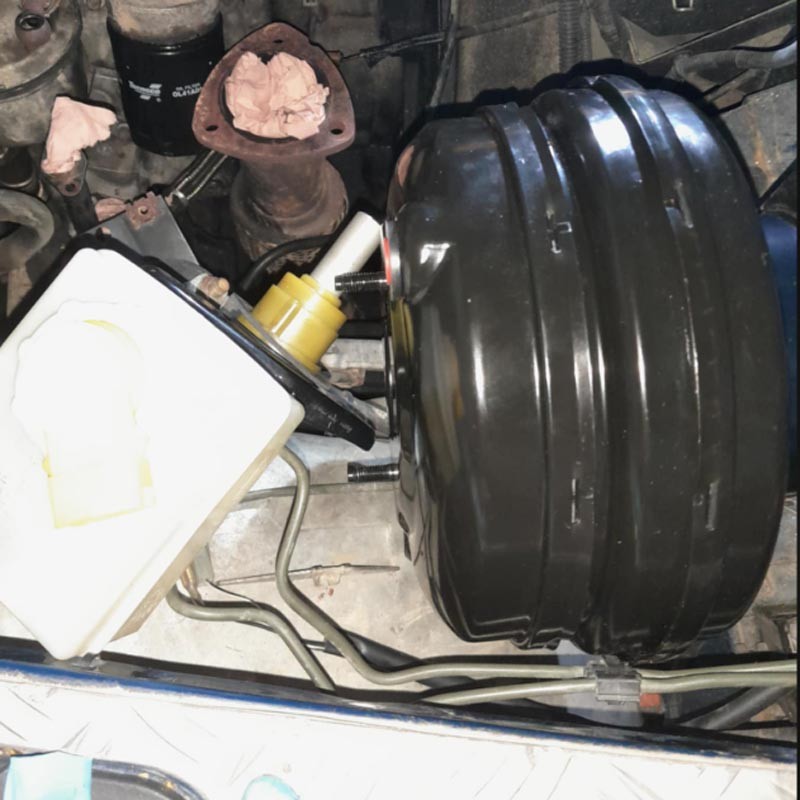

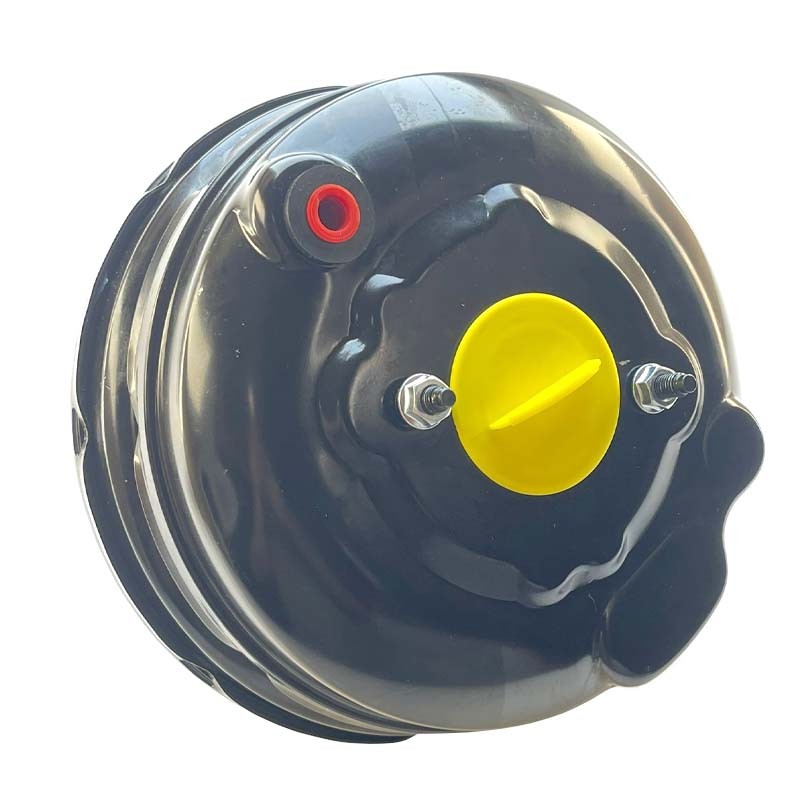

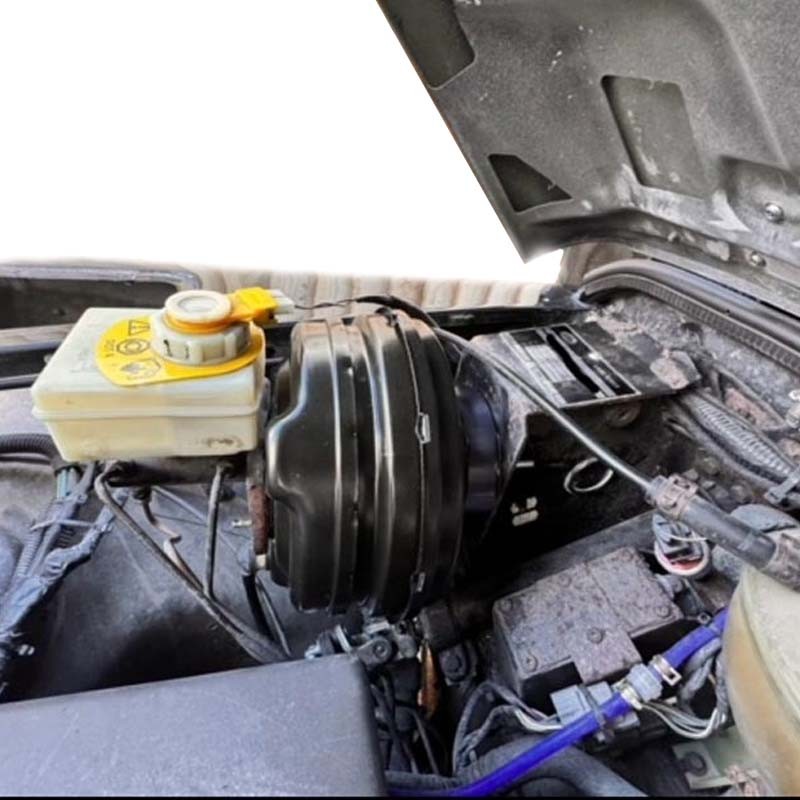

This kit allows you to remove your original Brake Servo, bolt on the LOF POWERboost ring to your brake pedal box and then install a later model, stronger ABS servo in its place, Part number SJG100240. Using this adapter from LOF, you can then re-mount your original brake master cylinder to the later, more powerful, double diaphragm servo, leaving your resevoir/ cylinder in the correct orientation. By doing this you double up on the servo assistance given to the master cylinder, reducing pedal effort and vastly improving braking performance! So much so the testing so far has shown braking to be significantly better than even an ABS Defender!

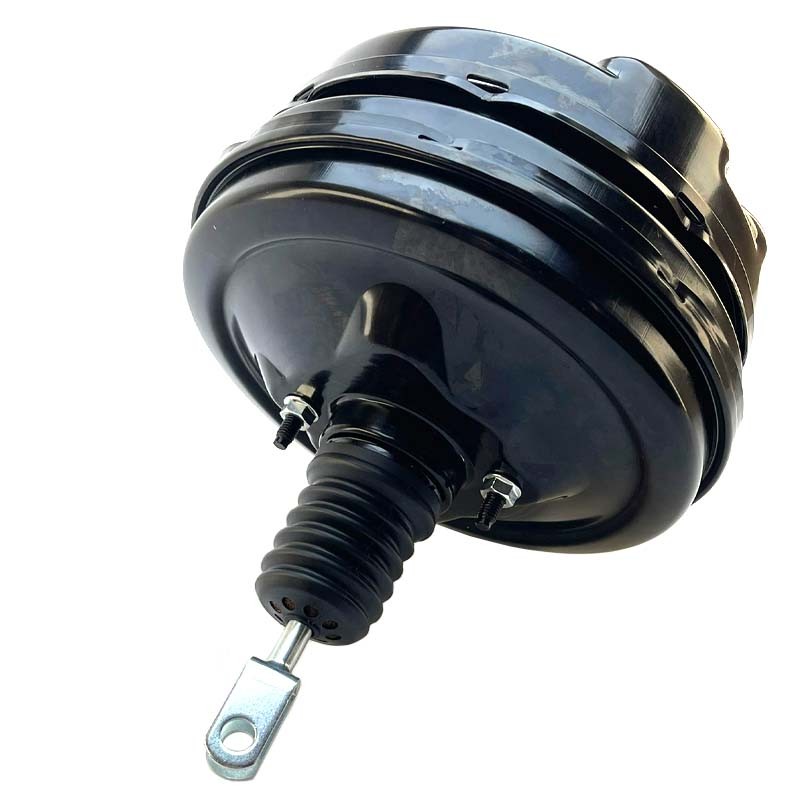

*The new brake servo part number SJG100240 does not have to be purchased from us, you can use a 2nd hand one or one sourced from else where, please ensure it is a Double Diaphragm servo (2 sets of crimpings) *some of the cheaper ones appear to only have 1 diaphragm*

Tools needed to fit:

1. 13mm spanner
2. 13mm socket + ratchet
3. Flat head screw driver
4. Pick / small screwdriver for removing a split pin
5. TDCI owners- Brake fluid + 11/14mm spanners +2 new brake lines see below
